Unit 4, Chapter 13 · Waves Transmitting Energy & Information

Light Waves

NGSS standards: MS-PS4-2

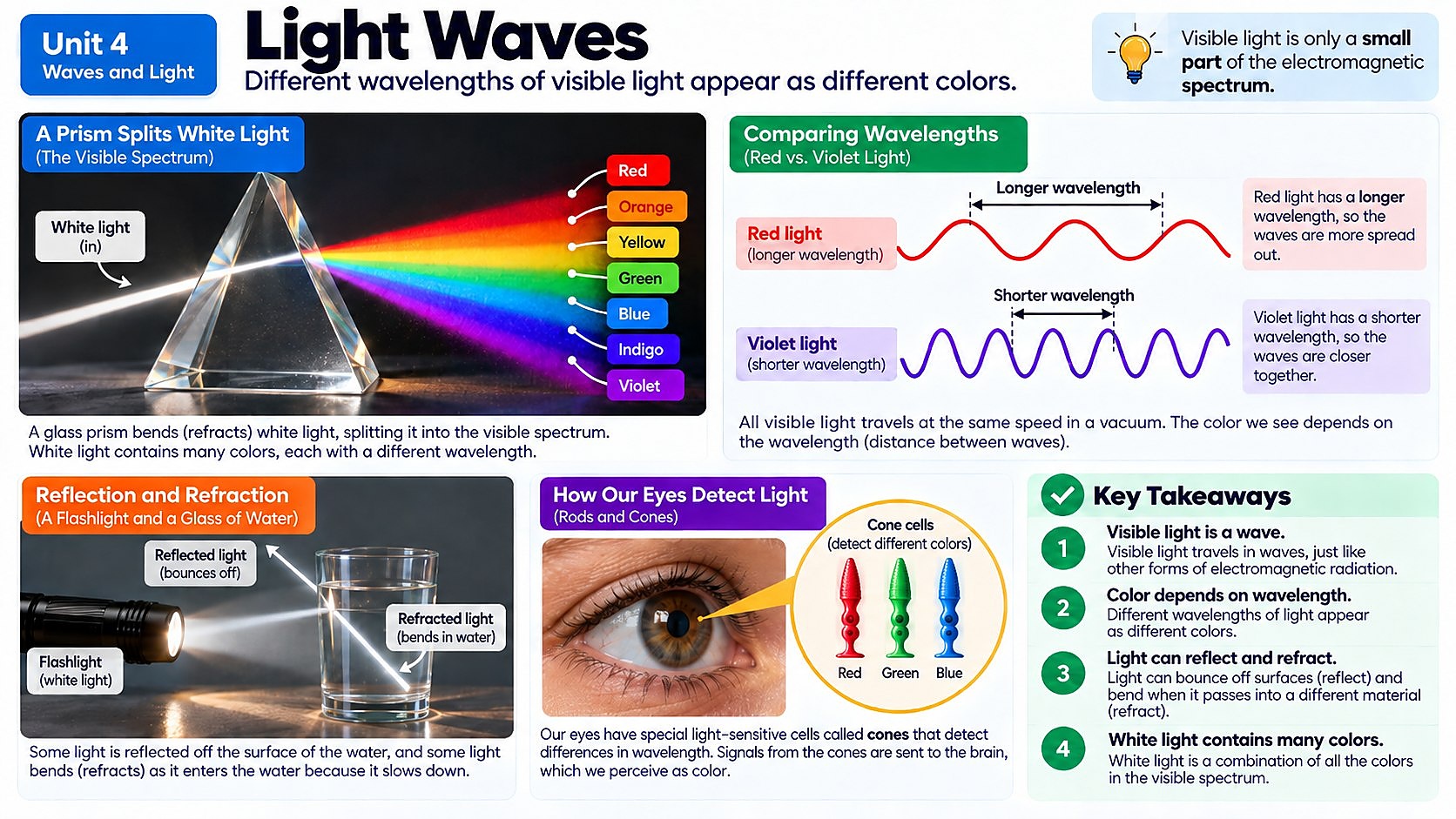

Chapter infographic, Light Waves. Different wavelengths of visible light appear as different colors. The poster works through the idea in labelled photo panels and ends with a list of key takeaways.
the poster to open it full size.

Light Behaves Like a Wave, With One Big Twist

Light bounces, bends, and can be blocked or absorbed just like the mechanical waves you explored with springs and ripple tanks. Shine a flashlight at a mirror and it reflects straight back at you, following the exact same rules of reflection as a wave bouncing off the edge of a ripple tank. Shine it through a glass of water and you'll see it refract, bending as it crosses from air into water because light slows down when it enters a denser material.

But light has one enormous difference from sound: it doesn't need a medium at all. Sound needs air, water, or a solid to travel through, which is why there's no sound in the vacuum of space. Light, however, is an electromagnetic wave: a wave made of vibrating electric and magnetic fields, not vibrating matter, so it travels just fine through the emptiness of space. That's exactly how sunlight crosses 93 million miles of empty space to warm your face.

So why does light slow down at all when it enters a denser material like water or glass? Light travels fastest in the emptiness of a vacuum, at an incredible 300,000 kilometers per second. But glass, water, and even air are packed with atoms, and every time a light wave reaches one of those atoms, it gets absorbed for an instant and then re-emitted, over and over, all the way through the material. Each of those tiny absorb-and-re-emit steps takes a fraction of a second, and all those fractions add up, so the light effectively slows down the deeper it has to travel through matter. That tiny slowdown at the boundary between two materials is exactly what causes the bending you see when a straw appears to break at the water's surface: the part of the light wave that enters the water first slows down before the rest of the wave does, which swings the whole wave's direction just like a shopping cart pulling to one side when one wheel sticks in the mud.

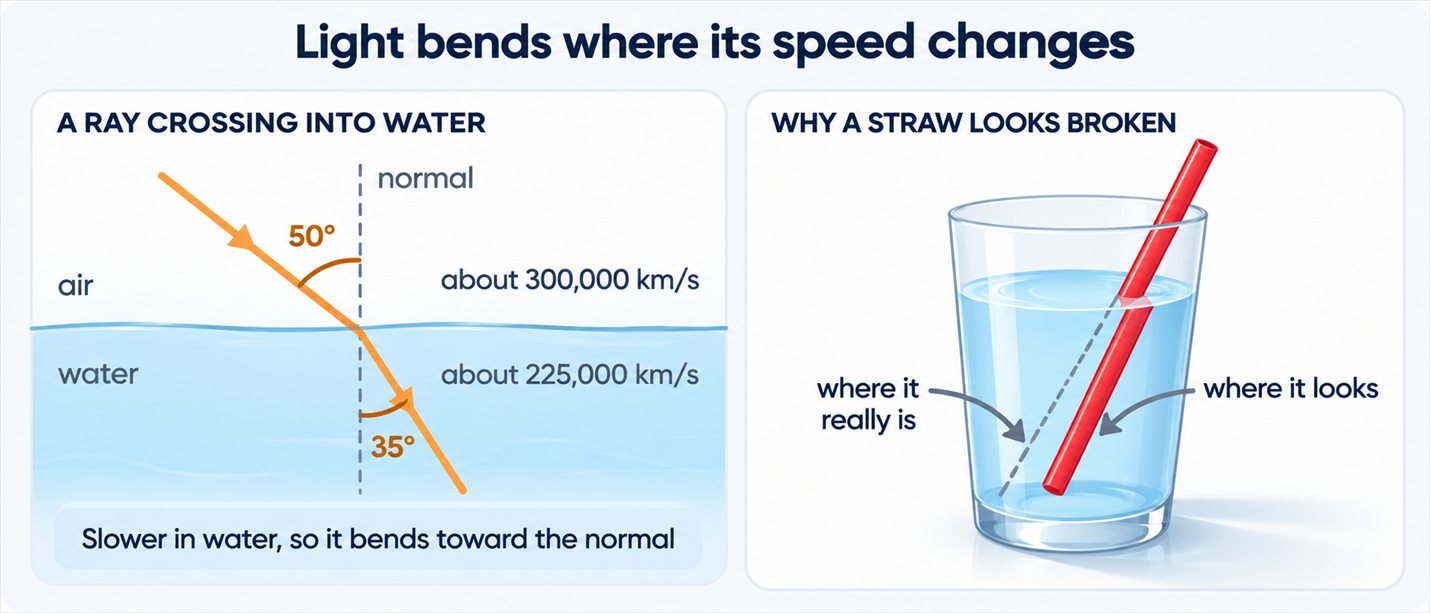

Left: a ray of light traveling through air at about 300,000 kilometers per second strikes a water surface at 50 degrees from the normal and continues through the water at about 225,000 kilometers per second, at 35 degrees from the normal, bending toward it. Right: a straw in a glass of water looks broken at the surface; a dashed line shows where the underwater part really is, while the visible part appears shifted to one side.
Figure 13.1. Light travels about 300,000 km/s in air but only about 225,000 km/s in water. Crossing at an angle, the edge of the beam that reaches the water first slows first, like one cart wheel hitting mud, so the whole beam swings toward the normal. Light from the underwater part of the straw bends the same way on its trip to your eye, so you see that part in the wrong place.

Absorption, Reflection, and Refraction in Everyday Materials

What happens when light hits an object depends on both the frequency of the light and the material it hits. A red shirt looks red because the fabric absorbs every color of light except red, which it reflects back to your eyes. A clear glass window lets most light pass straight through (transmission), while a mirror is built to reflect almost all of it. Black pavement gets scorching hot on a sunny day because dark materials absorb most light energy and convert it into heat instead of reflecting or transmitting it.

Engineers exploit these behaviors on purpose. Sunglasses use tinted materials that absorb certain frequencies of light to protect your eyes. Camera and eyeglass lenses are precisely curved pieces of glass that refract light in controlled ways to focus an image. Mirrors are coated with reflective metal to bounce nearly all light back. Even soundproofing foam in a recording studio is chosen because its bumpy shape and soft material absorb sound waves instead of reflecting them around the room, showing that the same principles (reflection, absorption, and transmission) apply across totally different types of waves.

One Rainbow, One Giant Spectrum

When white light passes through a prism, it splits into a rainbow of colors: red, orange, yellow, green, blue, indigo, and violet. Each color you see is really just visible light at a different frequency and wavelength: red has the longest wavelength and lowest frequency of visible light, while violet has the shortest wavelength and highest frequency. But that rainbow is only a tiny sliver of something much bigger: the electromagnetic spectrum.

The electromagnetic spectrum includes every type of electromagnetic wave, from radio waves with wavelengths longer than a football field, through microwaves, infrared, visible light, ultraviolet, and all the way to X-rays and gamma rays with wavelengths smaller than an atom. Every single one of these is fundamentally the same kind of wave as visible light, just at a different frequency. Higher-frequency EM waves carry more energy, which is why X-rays can pass through soft tissue to photograph your bones, while low-frequency radio waves can safely pass through walls carrying nothing more than a Wi-Fi signal.

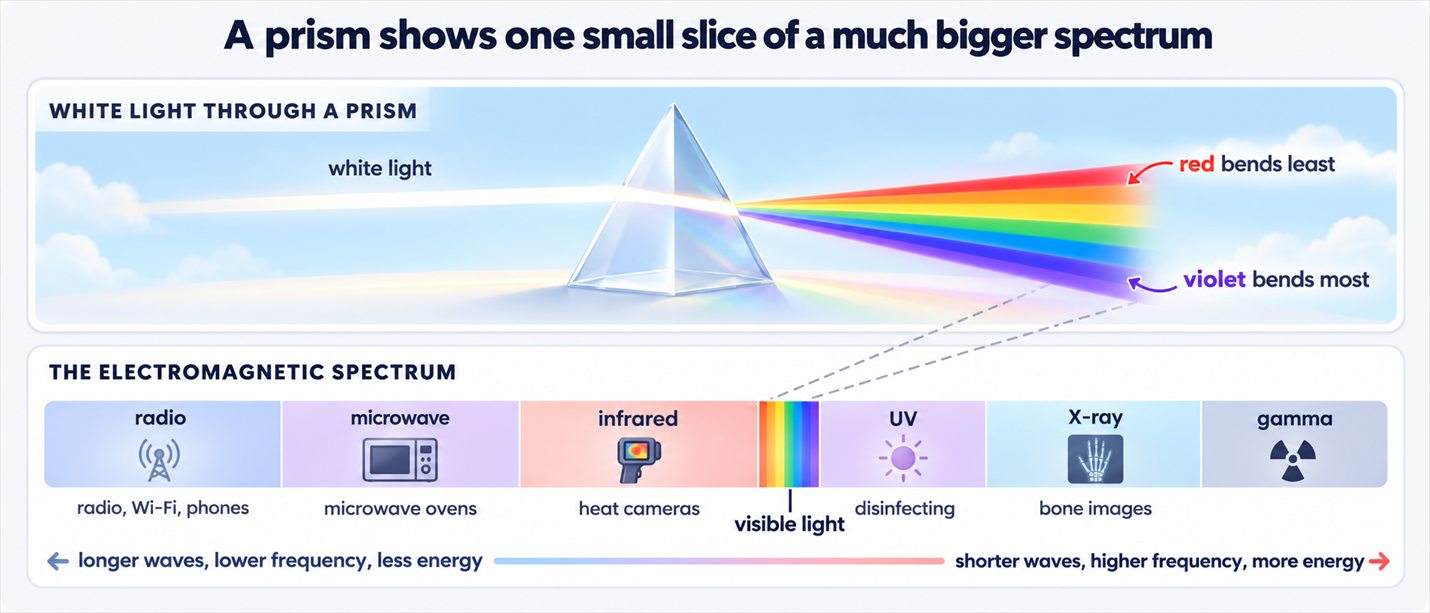

Top: a beam of white light enters a triangular prism and fans out into red, orange, yellow, green, blue, indigo, and violet, with red bent least and violet bent most. Bottom: the electromagnetic spectrum as a bar running from radio waves, through microwaves, infrared, a thin sliver of visible light, ultraviolet, and X-rays, to gamma rays. From left to right the waves get shorter and their frequency and energy get higher; dashed lines connect the rainbow to the visible sliver.
Figure 13.2. Everything the prism shows you fits inside that thin rainbow sliver. The rest of the spectrum is the same kind of wave with longer or shorter wavelengths, and the shorter the wavelength, the higher the frequency and the more energy it carries. The bar uses a squeezed scale: radio waves can be longer than a football field and gamma rays smaller than an atom, so an even scale would never fit on a page.

Society uses different parts of this spectrum constantly: microwave ovens vibrate water molecules in food to cook it, infrared cameras detect body heat in the dark, ultraviolet light disinfects water and hospital equipment, and radio waves broadcast everything from music stations to the signal your phone uses to make a call. You're surrounded by invisible waves nearly every moment of your life.

There's one more twist worth knowing: mixing colors of light works differently than mixing colors of paint. Combine red, green, and blue light together at full brightness and you get white light: that's called additive color mixing, and it's exactly how the screen you're reading this on works, with tiny red, green, and blue lights combining to create every color you see. Mixing paint, however, works by subtraction: each paint color absorbs certain wavelengths and reflects the rest, so mixing paints together removes more and more wavelengths of light until you're left with a muddy brown or black instead of white. Next time you look closely at a phone or TV screen, or use a magnifying glass on one, you can actually see the individual red, green, and blue lights working together to build the whole picture.

Why Is the Sky Blue and Sunsets Red?

Here's a mystery you've probably never thought to ask about: why is the sky blue during the day, but the Sun turns red at sunset? Both are explained by a phenomenon called scattering, which happens when light waves bounce off tiny particles and molecules in Earth's atmosphere, mostly nitrogen and oxygen molecules, far smaller than the wavelength of visible light itself.

Blue and violet light have shorter wavelengths and higher frequencies than red and orange light, and it turns out that shorter wavelengths scatter far more easily off small molecules than longer wavelengths do. During the middle of the day, when sunlight has a short, direct path through the atmosphere to your eyes, blue light gets scattered in every direction across the entire sky, so no matter where you look, some scattered blue light reaches your eyes. That's why the sky looks blue instead of black, even though sunlight itself is actually a mix of every visible color.

At sunset, the story changes because the Sun sits low on the horizon, so its light has to travel through a much longer stretch of atmosphere to reach your eyes. Nearly all the blue light gets scattered away long before it arrives, leaving mostly the longer-wavelength red and orange light to make it through directly. That's exactly why sunsets glow red, pink, and orange instead of blue.

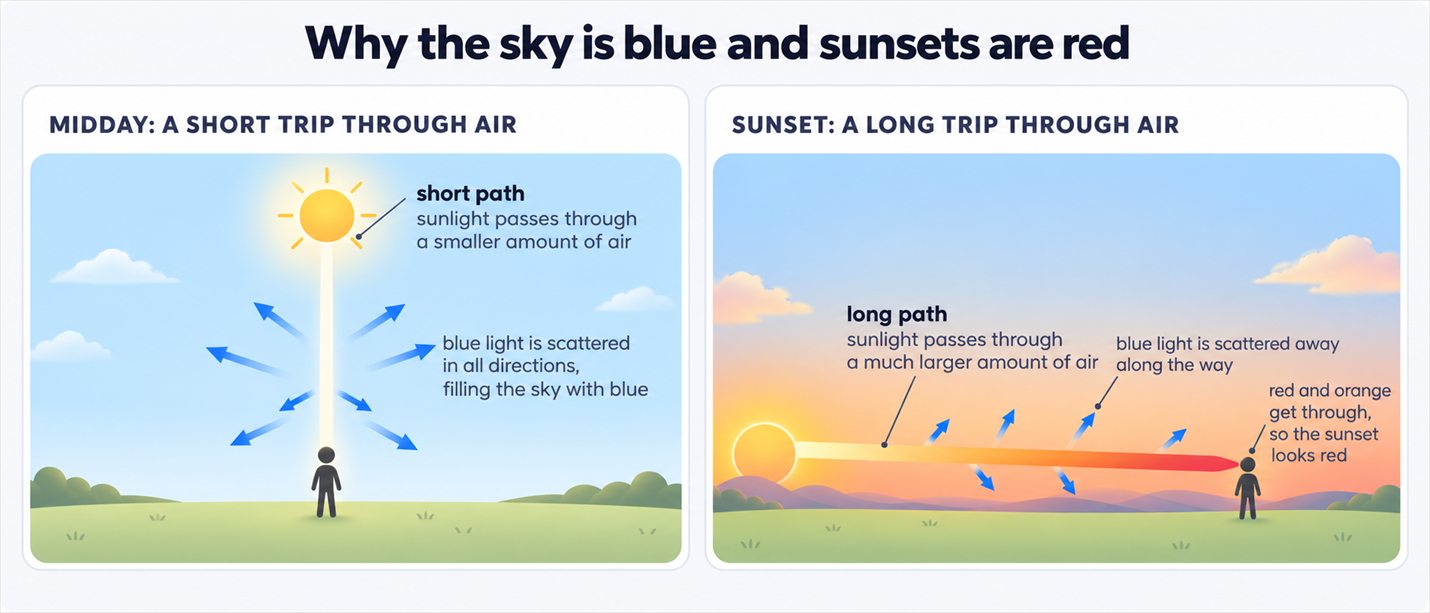

Left, midday: the sun is overhead, so its light crosses only a thin layer of atmosphere to reach a person, and blue light scattered by the air reaches the person from all over the sky. Right, sunset: the sun sits on the horizon, so its light travels a long way through the atmosphere; blue light is scattered away along the path, and the beam that reaches the person has turned orange and red.
Figure 13.3. Air molecules scatter short blue waves much more than long red ones. At midday, sunlight’s short trip leaves plenty of blue bouncing around the whole sky; at sunset, the long trip scatters most of the blue away before the light reaches you, so mostly red and orange arrive.

This same scattering principle explains other everyday sights too: clouds look white because water droplets are big enough to scatter every color of light equally, and the ocean can look a deeper blue on a clear day partly because of how sunlight scatters off water molecules and tiny particles suspended in it. A sight you see nearly every single day, fully explained by nothing more than how differently colored light waves interact with tiny particles in the air.

Why Objects Have the Colors They Do

Here is a question that sounds childish and turns out to be sharp: why is grass green? Not "because it has chlorophyll," but what is physically happening with the light. When a mixture of light waves lands on something that is not transparent, the object absorbs some of those waves and reflects the rest. The color you see is simply whichever waves bounced back to your eye.

So a rose looks red because it absorbs nearly every wavelength striking it and reflects the red ones. A pair of socks looks blue because it reflects blue and swallows the rest. Push that logic to its ends and two familiar cases fall out: an object that reflects all the light waves hitting it looks white, and an object that reflects almost none of them looks black. Black is not a color being sent to your eye. It is the near absence of any light coming back.

This also explains a trick that startles people the first time they see it. Photograph those blue socks under a red filter, which only lets red light through, and the socks go black. There is no blue light in the room for them to reflect, and blue socks absorb red, so nothing comes back at all. An object's color is not a fixed property it owns; it is a conversation between the object and whatever light happens to be available.

Left: white light, drawn as red, green, and blue arrows, shines on a pair of blue socks; the red and green arrows end at the sock, absorbed, and only the blue arrow bounces to an eye, so the socks look blue. Right: a red filter lets only red light through; the blue socks absorb it, nothing bounces back to the eye, and the socks look black.
Figure 13.4. An object’s color is the light it sends back. In white light the socks reflect blue and absorb the rest; under a red filter there is no blue to reflect, the red gets absorbed, and nothing reaches your eye, so the same socks look black.

One more surprise: although people can distinguish thousands of colors, nearly all of them can be produced by mixing just three. Red, green, and blue are the primary colors of light. Overlap red and green light and you get yellow; overlap all three and you get white. This is exactly how the screen you are reading on works. Look very closely at a phone display and you will find only red, green, and blue dots, mixing in different amounts to fake every other color your eye reports.

The Law of Reflection

You can see your face in a still pond but not in a choppy one, and you can see it in polished metal but not in a sheet of paper. Both facts come from one rule plus one detail about surfaces.

The rule is the law of reflection. Imagine a line drawn straight out from the surface at the exact point the light hits, perpendicular to it. Scientists call that line the normal, the same word you met describing the normal force back in Unit 1. The incoming ray makes an angle with the normal called the angle of incidence, and the bounced ray makes an angle called the angle of reflection. The law says those two angles are always equal, on any surface, made of any material, every time.

The detail is smoothness. On a mirror or still water, the surface is so flat that every parallel ray arriving hits at the same angle and leaves at the same angle, so the rays stay organized and your eye reassembles them into a sharp image. On paper, or on a rippled pond, the surface is rough at a small scale, so neighboring rays strike little slopes tilted every which way. Each ray still obeys the law perfectly, but they scatter off in all directions and no image survives. Nothing about the physics changed between the mirror and the paper. Only the geometry of the surface did.

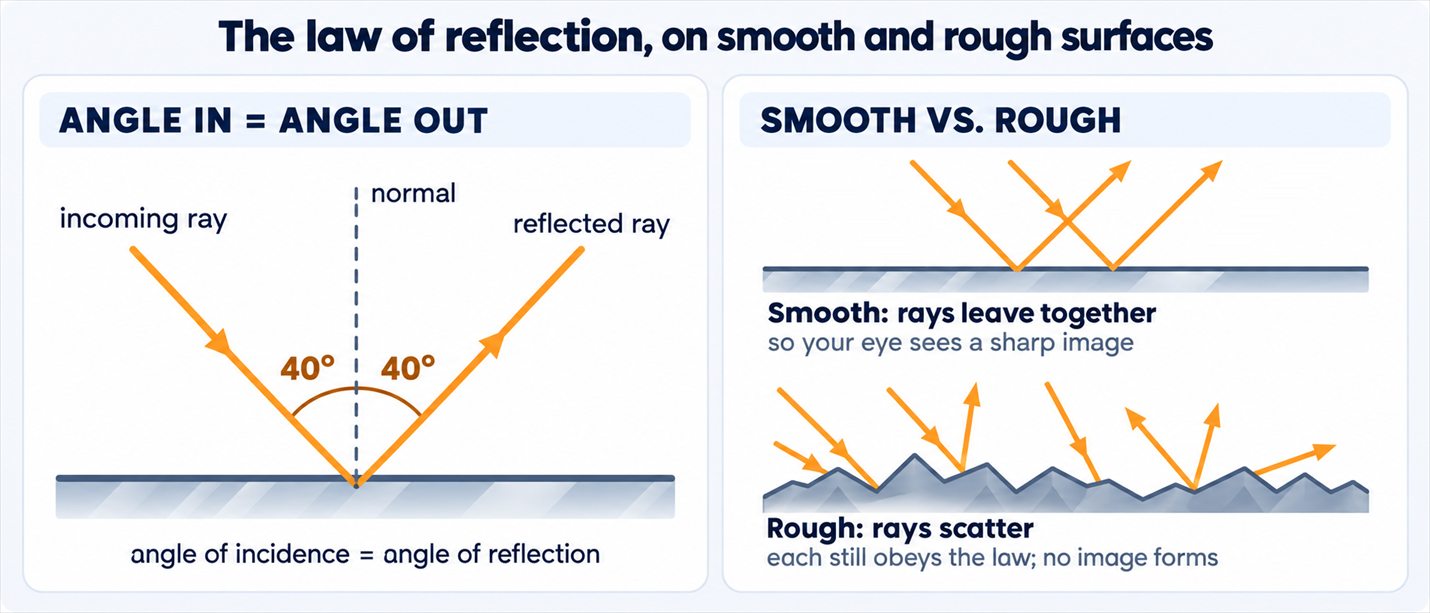

Left: a flat mirror with a dashed normal line drawn perpendicular to it. An incoming ray strikes the mirror at 40 degrees from the normal and the reflected ray leaves at 40 degrees on the other side. Right, top: two parallel rays reflect off a smooth surface and leave parallel, so they form a sharp image. Right, bottom: rays strike a rough, bumpy surface; each reflects at an equal angle from its own tilted bump, so the rays scatter in different directions.
Figure 13.5. The normal is an imaginary line perpendicular to the surface. The ray comes in at 40° and leaves at 40° on the other side. On a rough surface every ray still obeys that rule at its own little slope, but the slopes face different ways, so the rays scatter and no image forms.

Real-World Connections

Polarized Sunglasses

Polarized sunglasses block certain light waves reflecting off flat surfaces like water or roads, cutting down glare using the same reflection ideas used to describe how light interacts with materials.

Studying Starlight

Scientists can determine what a distant star is made of just by studying the specific colors of light it gives off, without ever traveling anywhere near it.

How they tie togetherBoth examples depend on carefully studying how light waves interact with matter: either controlling that interaction to cut glare, or reading the information already encoded in the light itself.

Meet the Scientist

Illustration of an astronomer in an observatory studying a star's spectrum and its dark lines on a monitor, with the telescope and its spectrograph behind and a star chart on the desk.

Astronomers

Astronomers use instruments called spectrographs to split starlight into its individual wavelengths, similar to how a prism creates a rainbow. The exact pattern of colors present or missing tells them what elements a star or planet's atmosphere contains, letting scientists study objects trillions of miles away without ever touching them.

Average salary in California
About $128,000 a yearBased on pay for astronomers across California, since Southern California numbers aren't published (U.S. Bureau of Labor Statistics, May 2025).

Key Vocabulary

Bold, underlined words in the reading above are clickable too. Tap one to see its definition pop out. Or click or tap a card below to reveal the definition.

Electromagnetic Wavetap to flip
A wave made of vibrating electric and magnetic fields that can travel through empty space without a medium.
Electromagnetic Spectrumtap to flip
The full range of electromagnetic waves, from long, low-frequency radio waves to short, high-frequency gamma rays.
Visible Lighttap to flip
The narrow band of the electromagnetic spectrum that human eyes can detect, seen as the colors of the rainbow.
Absorptiontap to flip
When a material takes in a wave's energy instead of reflecting or transmitting it, often converting it into heat.
Transmissiontap to flip
When a wave passes through a material, like light passing through clear glass.
Refractiontap to flip
The bending of light as it passes between materials of different densities, such as air and water.
Prismtap to flip
A transparent object that splits white light into its full spectrum of colors by refracting each wavelength differently.
Vacuumtap to flip
A space completely empty of matter; light can travel through it, but sound cannot.
Law of Reflectiontap to flip
When light reflects off a surface, the angle of incidence equals the angle of reflection.
Opaquetap to flip
A material that lets no light pass through it, so you cannot see objects behind it.
Translucenttap to flip
A material that lets only some light pass through, like frosted glass or waxed paper, so objects behind it are visible but not clear.
Transparenttap to flip
A material that lets nearly all light pass through it, like clear glass, so objects behind it are seen clearly.
Primary Colors of Lighttap to flip
Red, green, and blue. Mixing these three in different amounts can produce nearly any color of light.

Explore More

Read

Explore the Electromagnetic Spectrum

NASA Space Place
Open article →
Try the simulation

Bending Light

PhET Interactive Simulations
Launch simulation →

Electromagnetic Waves

FuseSchool - Global Education on YouTube
Watch on YouTube →

Refraction and Refractive Index | GCSE Physics

Doodle Science on YouTube
Watch on YouTube →

Why Is the Sky Blue? | Physics for Kids

SciShow Kids on YouTube
Watch on YouTube →

Chapter Review

1. Why can sunlight reach Earth through the vacuum of space, but sound cannot?

2. A red shirt appears red in sunlight because the fabric mostly:

3. Which part of the electromagnetic spectrum has the shortest wavelength and highest energy?

4. Why does a straw appear to bend where it enters a glass of water?

5. A mirror and a pair of sunglasses handle light very differently on purpose. What is happening?

Design the Experiment

California Science Test (CAST) Practice

CAST-Style Practice Item

Light travels at about 300,000 kilometers per second in a vacuum, but it slows down by different amounts depending on the material it enters. A student looked up the approximate speed of light in four common materials, shown in the table below.

MaterialSpeed of Light (km/s)
Air299700
Water225000
Glass200000
Diamond124000

Light traveling through air strikes each of these materials at an angle. Based on the data, entering which material would cause the light to refract, or bend, the most?
