Unit 6, Chapter 18 · Chemical Energy & Reactions

Molecular Composition

NGSS standards: MS-PS1-1MS-PS1-2MS-PS1-6

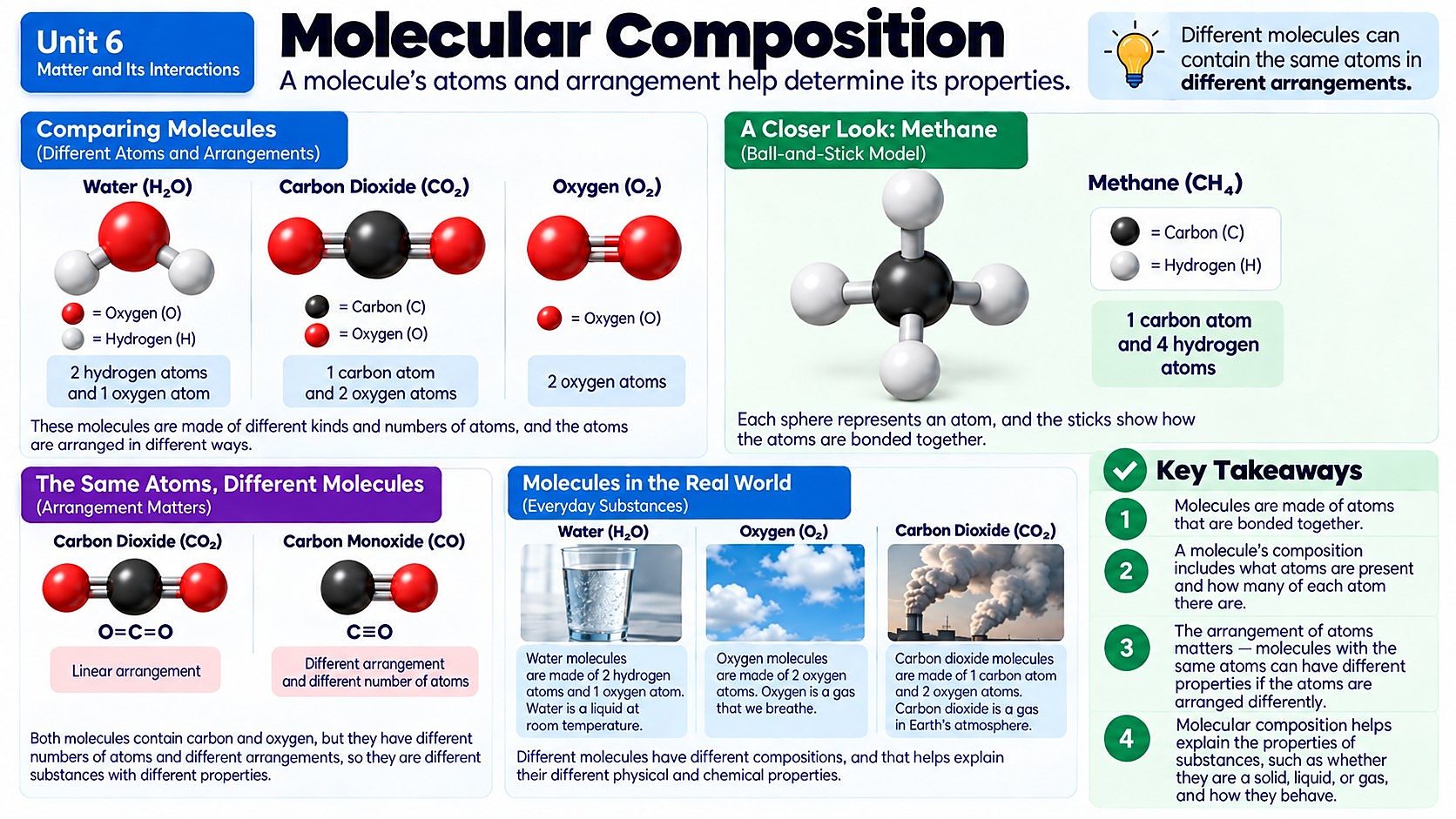

Chapter infographic, Molecular Composition. A molecule's atoms and arrangement help determine its properties. The poster works through the idea in labelled photo panels and ends with a list of key takeaways.
the poster to open it full size.

Zooming In: What Is Stuff Actually Made Of?

Grab any object near you right now - your pencil, your water bottle, the air you're breathing - and imagine zooming in past what your eyes can see, past what even the strongest microscope can see, all the way down to the particles it's built from. What you'd find is surprisingly varied. A gold ring is made of nothing but gold atoms, sitting shoulder to shoulder in a repeating pattern. The oxygen you just inhaled is made of molecules - two oxygen atoms bonded together as O2, like a matched pair holding hands. Diamond is carbon atoms, but instead of pairing up, they link into a giant, repeating 3D framework that never really ends.

Things get even more interesting when different kinds of atoms team up. Water is a molecule made of two different elements bonded together - two hydrogen atoms and one oxygen atom, forming H2O. Table salt takes this idea even further: it's not really made of individual salt molecules floating around. Instead, sodium and chlorine ions stack together into a giant, repeating crystal pattern, alternating over and over in a 3D grid, kind of like a perfectly organized game of checkers stretched into three dimensions.

So before we even talk about mixing anything, it helps to remember that every substance already has its own "molecular identity" - whether it's a single element standing alone, a small molecule of a few bonded atoms, or a sprawling crystal lattice. That identity is exactly what determines how a substance is going to behave once things start getting mixed together.

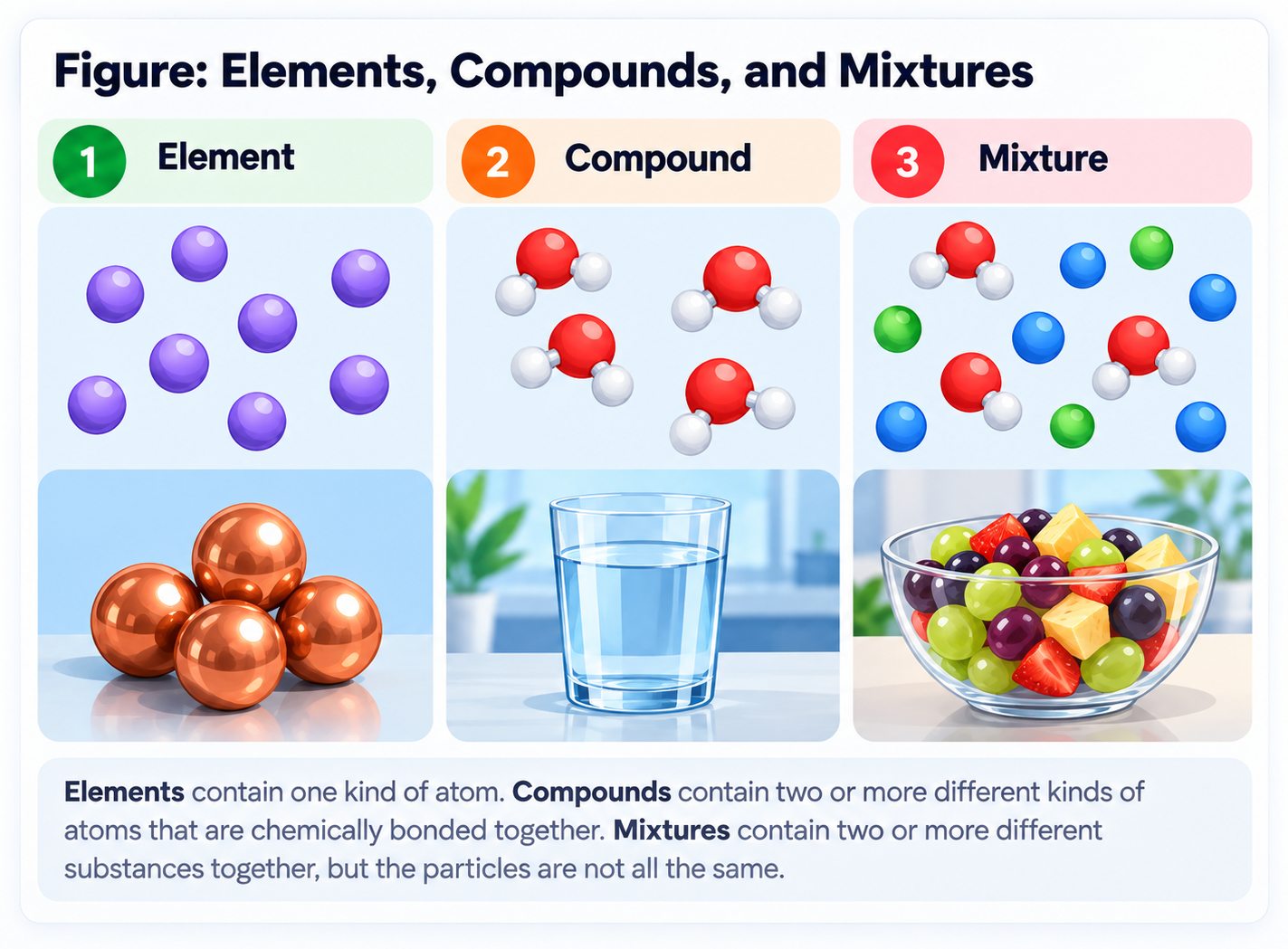

Three columns: an element, shown as identical purple atoms above a pile of copper balls; a compound, shown as identical water molecules above a glass of water; and a mixture, shown as several different kinds of particles above a bowl of fruit salad.
Figure 18.1. Three kinds of molecular identity. Copper is an element (one kind of atom), water is a compound (different atoms bonded the same way every time), and fruit salad is a mixture (different substances mingled but not bonded).

It's worth pausing on a common mix-up here: none of this means atoms are "used up" or disappear when substances mix or react. A spoonful of sugar stirred into water doesn't lose any sugar atoms - they're still there, just spread out among water molecules instead of clumped into solid crystals. Whether atoms are locked in a lattice, paired into a molecule, or dissolved into a solution, they're always still present somewhere in the system.

Before You Mix: Taking Each Substance's Fingerprint

Imagine a scientist lines up a row of unlabeled powders and liquids on a lab bench. Before mixing anything, the smart move is to study each one alone first, almost like taking its fingerprint. Is it a white powder or a clear liquid? Does it have a smell? What's its density (how much mass is packed into a given volume)? At what temperature does it melt or boil? These are all physical properties - features you can observe or measure without turning the substance into something else.

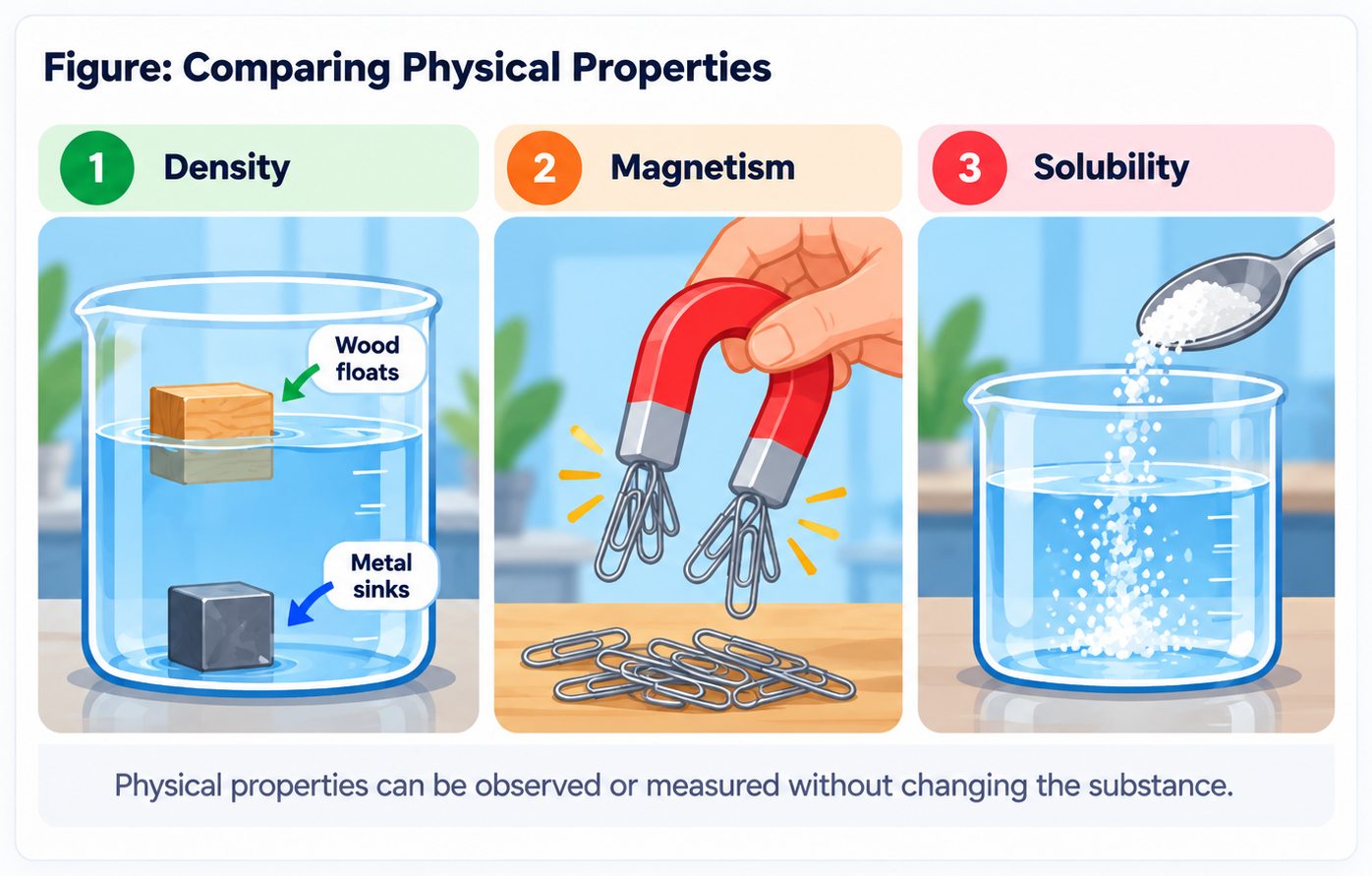

Three panels: a beaker of water with a wooden block floating and a metal cube sunk to the bottom, labeled density; a horseshoe magnet picking up paper clips, labeled magnetism; and a spoon pouring white crystals into a beaker of water, labeled solubility.
Figure 18.2. Three fingerprints you can take without changing the substance: whether it floats or sinks (density), whether a magnet pulls on it, and whether it dissolves.

This step matters more than it might seem. Baking soda, for example, is a fine white powder with basically no smell, and it doesn't dissolve in oil. Vinegar is a clear, sharp-smelling liquid. If you only ever saw them combined, you'd have no way of knowing what each one was like on its own - and no way of noticing that anything unusual happened when they met.

Recording this baseline data - density, melting point, boiling point, odor, color, texture - gives scientists something to compare against later. It's the "before" picture in a before-and-after story, and in chemistry, that comparison is everything.

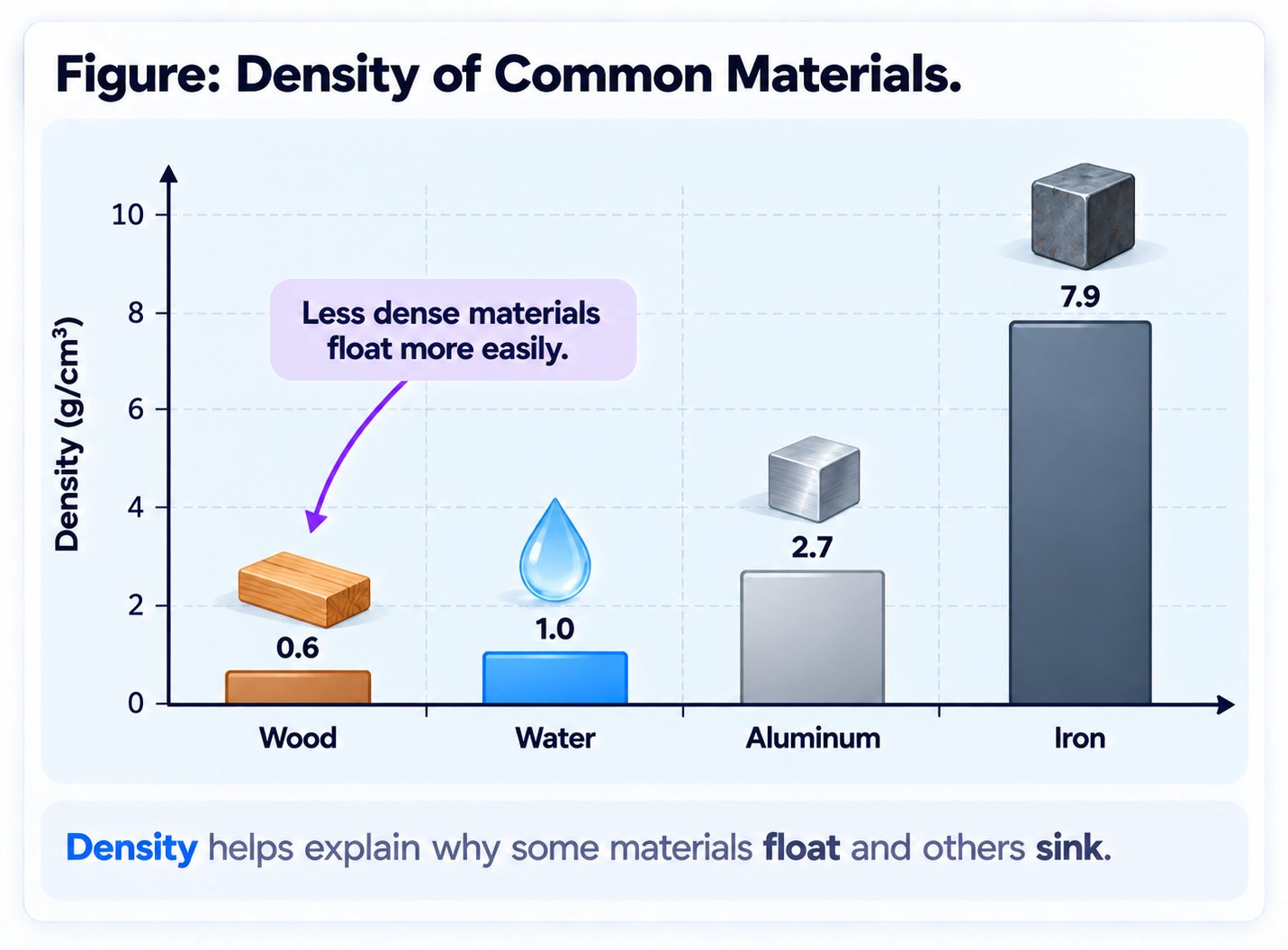

Bar graph of density in grams per cubic centimeter: wood 0.6, water 1.0, aluminum 2.7, and iron 7.9, with a small picture of each material above its bar.
Figure 18.3. Density is one line of a substance's fingerprint. Anything less dense than water (1.0 g/cm³), like wood, floats in it; aluminum and iron are denser, so they sink.

The Big Mix: Hunting for Patterns

Now comes the fun part - actually combining substances and watching closely. Sand stirred into water still looks and behaves like sand and water; you can even filter them back apart. But drop baking soda into vinegar and something dramatic happens: bubbles erupt, the container feels colder to the touch, and if you let it dry out, you're left with a residue that isn't baking soda or vinegar. The properties changed. That's a strong clue that the atoms didn't just mingle - they rearranged into new substances entirely.

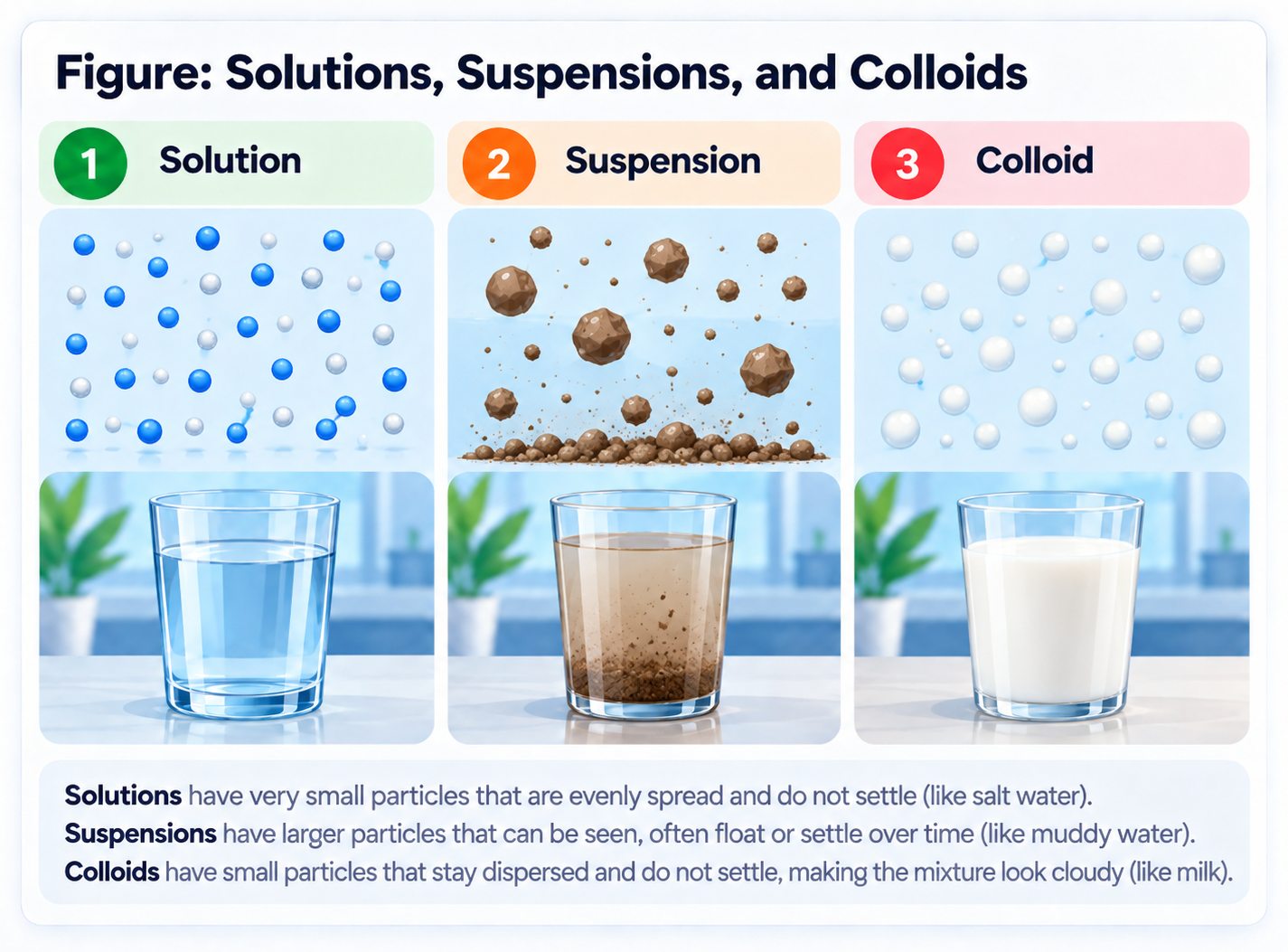

Three glasses with magnified particle views: a clear solution with tiny evenly spread particles, a cloudy brown suspension with large particles settling to the bottom, and a white colloid like milk with small particles that stay spread out.
Figure 18.4. Not every mixture looks alike, but none of them makes a new substance. Sand stirred into water behaves like the middle glass: the pieces stay separate and settle out, which is why a filter can pull them back apart.

Scientists look for patterns across many combinations: Does the new mixture have a different density than either starting ingredient? A different smell? Does it boil or melt at a new temperature? When several of these physical properties shift at once, especially alongside bubbles, color changes, or temperature swings, it's a signal that a chemical reaction - not just a physical mixture - has taken place.

Feeling the Heat (or the Cold): Exothermic vs. Endothermic

Here's something else worth tracking when substances react: what happens to the energy. Some reactions release thermal energy into their surroundings, making things feel warmer - these are called exothermic reactions. Think of a crackling campfire, or the calcium chloride packs hikers use as instant hand warmers. Other reactions do the opposite: they pull thermal energy in from their surroundings, making things feel colder. These are endothermic reactions, like the ammonium chloride packets in an instant cold pack that athletes snap onto a twisted ankle.

Even the speed of that energy change tells you something. A cold pack chills almost instantly, releasing (or in this case, absorbing) energy fast, while other reactions, like iron slowly rusting, absorb or release energy so gradually you'd never notice without careful measurement over days or weeks. Comparing how much energy changes, and how quickly, is one more powerful clue scientists use to understand exactly what a reaction is doing.

You can even put rough numbers on this. Picture two identical zip-top bags of chemicals, each starting at a comfortable 22°C. Snap the activator in an exothermic hand warmer, and a thermometer might climb to 54°C within a minute. Snap an endothermic cold pack instead, and that same thermometer might plunge to 3°C almost immediately. Neither bag gains or loses any mass in the process - the chemicals inside simply rearrange into new substances, and the energy released or absorbed by that rearrangement is exactly what changes the temperature you feel in your hands.

Worked Example: Solving the Fizzy, Freezing Mystery

Let's revisit the mystery from the start of this chapter: two clear liquids that turn ice-cold and start fizzing the instant they're combined. Imagine a chemist mixes 50 grams of a citric acid solution with 50 grams of a baking soda solution, both starting at 22°C. The instant they touch, bubbles of carbon dioxide gas stream upward, and a thermometer dipped into the mixture drops to 9°C within thirty seconds.

What does that tell us? The bubbles are a dead giveaway that a new substance, a gas, is forming that wasn't in either starting liquid - a classic sign of a chemical reaction. The temperature drop tells us the reaction is endothermic, pulling thermal energy from the surrounding liquid. If you weighed the open container before and after, the mass would actually dip slightly, from 100 grams to about 98 grams, because some carbon dioxide escaped into the air as bubbles. That's an important preview: matter isn't disappearing, it's simply leaving the system as gas. Seal the same reaction in an airtight container, and the scale would read exactly 100 grams both times.

What Actually Holds a Molecule Together

This chapter keeps saying atoms are "bonded" into molecules, which raises an obvious question: what is a bond, physically? The answer comes down to electrons, and to the fact that atoms are more stable when their outer electron level is full. Atoms have two very different strategies for getting there, and those strategies produce two different kinds of bond.

The first strategy is to hand electrons off. A sodium atom is more stable if it gets rid of one electron, so it does. But losing a negatively charged electron leaves sodium with one more proton than electron, so it is no longer neutral: it becomes a positively charged particle called an ion. Chlorine has the opposite problem and is more stable after gaining one electron, which makes it a negative ion. Now you have a positive particle and a negative particle sitting next to each other, and opposite charges attract. That attraction holding them together is an ionic bond, and the result is table salt, sodium chloride.

The second strategy is to share. Some atoms cannot realistically give or take electrons, because it would cost far too much energy. Carbon is the classic example: it has four electrons in its outer level and would have to gain or lose four to reach stability, which is a tall order. So carbon shares instead. A covalent bond forms when atoms share electrons, and the shared electrons are pulled by both nuclei at once, drifting back and forth so each atom gets a full outer level part of the time.

That distinction explains a piece of vocabulary that often seems arbitrary. Because no electrons were gained or lost in covalent bonding, the group of atoms ends up neutral, and a neutral group of covalently bonded atoms is what scientists call a molecule. Water and methane are molecules. Table salt, strictly speaking, is not, because its basic units are ions rather than shared-electron groups. Give or take electrons and you get ions and ionic bonds; share them and you get molecules and covalent bonds.

Real-World Connections

Designing New Medicines

Pharmaceutical chemists build molecules atom by atom, testing tiny changes in molecular structure to create medicines that fight specific diseases more effectively or with fewer side effects.

Table Salt's Crystal Structure

Ordinary table salt is a repeating 3D structure of sodium and chlorine atoms locked in a precise pattern, exactly why salt crystals always form the same cube-like shape.

How they tie togetherBoth examples show that a substance's structure (how its atoms are arranged and bonded) determines its properties, whether that's a medicine's effectiveness or a crystal's shape.

Meet the Scientist

Illustration of a pharmaceutical chemist building a ball-and-stick molecule model, with another model, sample vials, and a microscope on the lab bench.

Pharmaceutical Chemists

Pharmaceutical chemists design and build new molecules with specific 3D shapes intended to interact with a particular protein or cell in the human body. Creating a single new medicine can take years of building and testing thousands of slightly different molecular models.

Average salary in Southern California
About $99,000 a yearBased on pay for chemists in the L.A., Orange County, Inland Empire, San Diego, and Ventura areas (U.S. Bureau of Labor Statistics, May 2025).

Key Vocabulary

Bold, underlined words in the reading above are clickable too. Tap one to see its definition pop out. Or click or tap a card below to reveal the definition.

Atomtap to flip
The smallest basic unit of an element, like a single tiny building block of matter.
Moleculetap to flip
Two or more atoms bonded together, like O2 (two oxygen atoms) or H2O (water).
Crystal Latticetap to flip
A repeating, orderly 3D pattern of atoms or ions, like the structure found in table salt or diamond.
Densitytap to flip
How much mass is packed into a certain amount of space (mass divided by volume).
Melting Point / Boiling Pointtap to flip
The specific temperature at which a substance changes from solid to liquid, or liquid to gas.
Physical Propertytap to flip
A feature of a substance you can observe or measure without changing what the substance is, like color, odor, or density.
Exothermic Reactiontap to flip
A chemical reaction that releases thermal energy, making its surroundings feel warmer.
Endothermic Reactiontap to flip
A chemical reaction that absorbs thermal energy, making its surroundings feel colder.
Iontap to flip
An atom that is no longer neutral because it has lost or gained one or more electrons.
Ionic Bondtap to flip
A chemical bond formed by the attraction between a positive ion and a negative ion, after electrons have been transferred.
Covalent Bondtap to flip
A chemical bond formed when nonmetal atoms share electrons rather than transferring them.

Explore More

Read

Explainer: What are the different states of matter?

Science News Explores
Open article →
Try the simulation

States of Matter: Basics

PhET Interactive Simulations
Launch simulation →
Try the simulation

Molecular Model Kit

Physical Science 8 Sim Library
Launch simulation →

What Are Endothermic & Exothermic Reactions?

FuseSchool on YouTube
Watch on YouTube →

What Is an Element, Mixture, and Compound?

FuseSchool on YouTube
Watch on YouTube →

Organizing Properties (Crash Course Kids #35.1)

Crash Course Kids on YouTube
Watch on YouTube →

Chapter Review

1. Table salt (sodium chloride) is best described as which kind of molecular composition?

2. Before mixing two unknown substances, why do scientists first measure each one's properties separately?

3. Which observation would MOST strongly suggest that mixing two substances caused a chemical reaction rather than a simple physical mixture?

4. An instant cold pack gets noticeably colder the moment it's activated. What kind of reaction is happening inside it?

5. A diamond and a sample of oxygen gas (O2) are similar in one important way. What is it?

Design the Experiment

California Science Test (CAST) Practice

CAST-Style Practice Item

A student combines 50 g of Liquid A and 50 g of Liquid B in an open beaker at room temperature. Both liquids are clear and colorless before mixing. The table shows measurements taken before and immediately after mixing.

PropertyBefore Mixing (A + B)After Mixing
Temperature (°C)226
AppearanceTwo clear liquidsClear liquid with bubbles
Total Mass (g)10097

Which piece of evidence best supports the claim that a chemical reaction occurred when Liquid A and Liquid B were combined, rather than just a physical mixing of the two liquids?
